Graphic Overlays
Engineering Interfaces Users Can Trust
A graphic overlay goes beyond a surface finish. It’s the interface that translates human intent into machine response.
iD Products helps engineers create custom graphic overlays that deliver clear graphics, consistent tactile feedback and long-term reliability — so your interface works as intended in real-world conditions.
Anticipating and heading off graphic overlay problems at the onset
Your product, whether it’s an appliance, medical device or watercraft, is engineered to perform. All it takes is one poor quality graphic overlay to bring unwanted interruption and failure modes, including:
Abrasion
Premature abrasion resulting from cleaning protocols
Unclear Graphics
Unclear graphics from UV fading, yellowing and cracking
Adhesive Failure
Adhesive failure between components and housings
Misalignment
Misaligned display windows and device lighting
Registration issues
Registration issues due to tolerance drift in multi-layer constructions
Delamination
Delamination under thermal cycling
Seal Failure
Seal failure leading to moisture or contaminant ingressAt iD Products, we want to stop these issues before they start to create an exceptional product experience.
OUR APPROACH
Engineering-led graphic overlay design
At iD Products, we bring an engineering mindset to each custom overlay project.
Systems level design:
Throughout the process, we evaluate how the overlay interacts with housings, lighting, switches, adhesives and user ergonomics

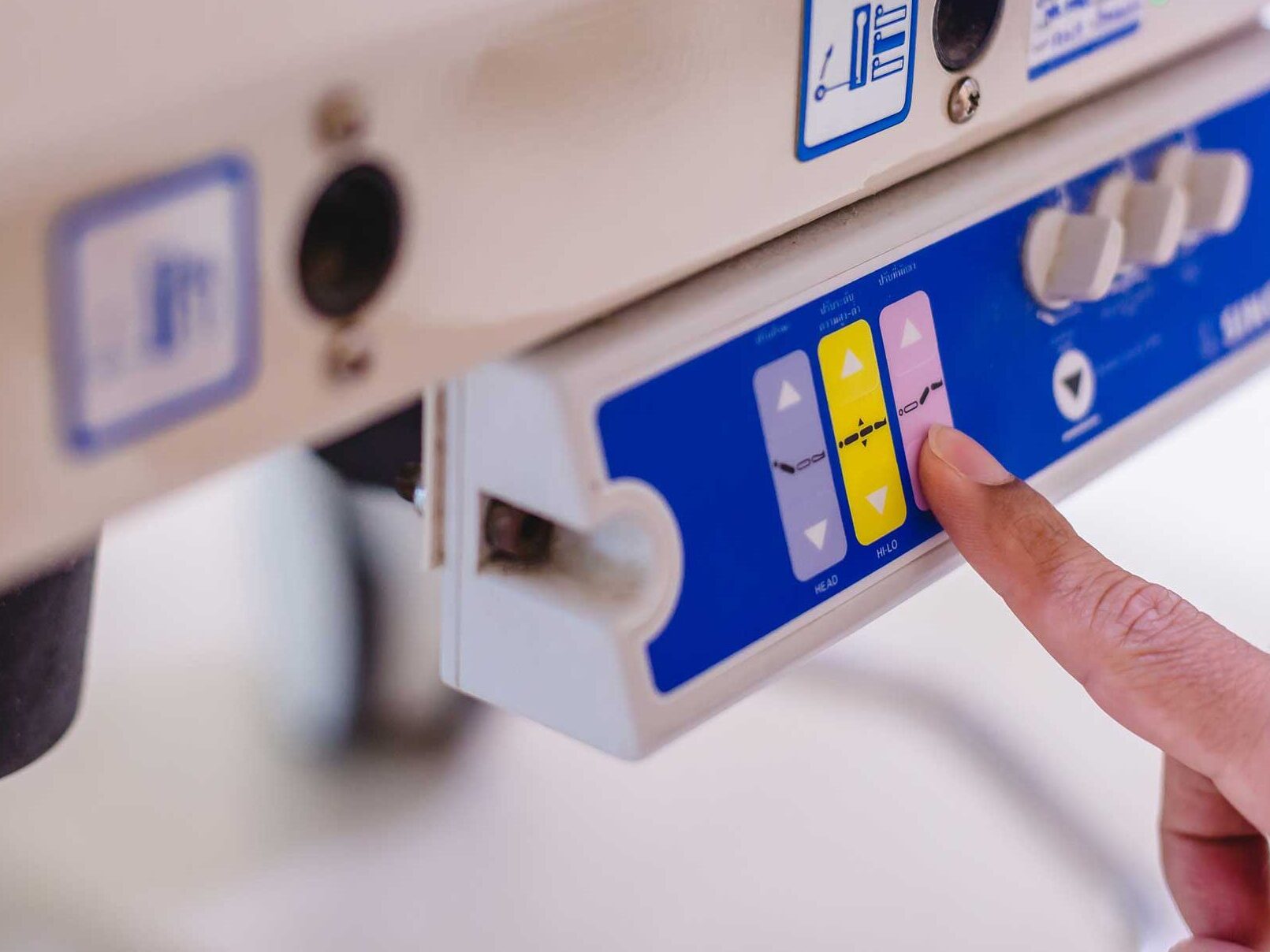

Rapid prototyping:
Validation of usability, optical clarity, tactile response and functional performance
Print system and ink selection:
Screen and digital printing based on durability, legibility and environmental exposure
Adhesive engineering:
Pressure sensitive adhesives matched to plastics, metals and textured or low-surface-energy surfaces
Durability by design:
Engineered for long-term use in industrial, medical and outdoor environments
Material expertise:
Built for harsh environments & heavy use
Material selection starts with understanding the environment in which your graphic overlay must survive. At iD Products, we apply materials expertise to engineer overlays that hold up under heavy use.
Substrate selection
Polyester films provide superior chemical resistance, dimensional stability and long-term performance in high-use and regulated environments, including medical devices.
Adhesive systems
Optically clear adhesives maintain clarity and light transmission in display windows and backlit interfaces.
Ink systems and protective layers
We stock a wide range of inks and films to deliver the precise look and durable finish you need for long-lasting performance.
Precision and tolerances:
A seamless, unified display
In a graphic overlay, even small deviations have an impact on usability and performance. Tolerance control is key to uniting graphics, display windows and lighting elements into perfect alignment — creating a seamlessly cohesive interface.
Registration Control: Multi-color printing and display windows are tightly registered to maintain accurate alignment with lighting elements and sensors.
Optical clarity: Clear, tinted or deadfront LCD/LED windows are engineered to manage light transmission and visibility.
Cut-path accuracy: Precision die cutting and CNC routing ensure overlays fit cleanly into housings without distortion, stress or edge lift.
Embossing consistency: Tactile features are controlled for height, shape and dome profile to deliver uniform actuation.
Adhesive control: Selected and die cut to prevent creep, shrinkage or misalignment during assembly and over the lifecycle of the product.
Our manufacturing processes:
Screen printing, digital and die cutting
Each manufacturing process has its advantages and tradeoffs. Here’s how we deploy them to create a precision overlay with the greatest efficiency without sacrificing quality.
PRINTING
Screen printing:
Strong resistance to abrasion, cleaning and chemical exposure. Provides precise control of light blocking for backlit interfaces.
Digital printing:
Supports complex imagery and fast iteration. Used when design flexibility and speed outweigh long-term durability.
DIE CUTTING METHOD
Digital cutting:
Ideal for prototyping and low-volume production. Supports complex cuts, fast design changes and tight positional control.
Steel die cutting:
Preferred for medium- to high-volume production. Delivers repeatable quality, tight tolerances and efficient throughput in the long term.
FINISHING
Controlled embossing:
Provides the right level of tactile feedback.
Selective textures and hardcoats:
Improves abrasion resistance and glare control.
Window clearing and optical adhesives:
Preserve clarity for displays and indicators.
Quality & validation of graphic overlays
A seamless overlay that delivers long-term durability is rooted in a disciplined approach to quality. iD Products supports demanding OEM requirements with documented processes and validation.
Certified quality management systems, supporting continuous improvement and documented process control
Documented manufacturing and quality control processes
Certified dies to support dimensional accuracy and repeatability
Inspection against customer specifications and tolerances
Barcode tracking and lot traceability throughout production
Certificates of Compliance available upon request
Applications & industries for custom graphic overlays
At iD Products, overlays are engineered not only for usability and visual clarity, but to withstand the specific environmental and operational challenges your device is subject to. These are some of the solutions that span across multiple industries.
- Chemical exposure and cleaning cycles: Overlays for medical devices, diagnostic equipment and laboratory instruments designed to withstand frequent cleaning, solvents and sterilization protocols.
- Outdoor exposure and UV resistance: Interfaces for recreational and industrial equipment built to resist moisture, temperature extremes, wind, frost and prolonged UV exposure.
- High-touch and abrasion-heavy use: Consumer interfaces, fitness equipment and kiosks are engineered to maintain legibility and durability under repeated contact and wear.
- Precision alignment and backlighting: Instrumentation and aerospace applications demand tight registration, sharp display windows and consistent illumination for high-stakes environments.
iD Products: Taking graphic overlays beyond the surface
Graphic overlays go beyond the surface. When alignment is off, materials fail or the tactile response degrades, users will notice immediately — potentially impacting safety, uptime and trust. That’s why iD Products works as an engineering partner starting from the earliest design stages. We’re here to help you anticipate challenges, validate choices and build overlays that perform reliably in real-world conditions.
Ready to talk about the requirements for your graphic overlay?
Ready for a quote?
