Close Tolerance Machined Panels
Precision through CNC technology, ready for assembly
Machined panels are multitaskers across many product lines, providing housing and interface panels for everything from portable medical devices to heavy industrial equipment. Some are designed to protect, others provide a functional interface. All carry the same expectation: arrive with no surprises in fit, finish or assembly.
iD Products delivers precision machined panels that arrive ready to install for a professional finished fit. Using CNC technologies and CAD-driven design, we mill, engrave and contour materials to your exact specifications. To improve throughput, we also provide secondary services ranging from powder coating and anodizing to hardware installation.
The result: Openings align, hardware locks into place and a polished, professional finish.
Small panel errors lead to big product problems
Every panel failure starts with the tiniest inaccuracy.
Misaligned cutouts:
Connectors, displays and controls fail to align properly during assembly.
Excessive or insufficient clearance:
Gaps compromise sealing performance while tight clearances create interference with closures.
Tolerance
stack-up:
Small dimensional variations accumulate across multiple components, creating fit and alignment problems.
Poor cosmetic finish:
Uneven coatings and surface defects detract from the appearance of the finished product.These errors result in costly rework, material waste and production delays.
Machined panels for fit, finish and assembly
A reliable fit every time goes beyond precision machining. At iD Products, our processes are built to ensure each detail works together.
Material Selection: We help identify the right substrate, whether it be metal or plastic, for your application, sourcing high quality materials through our trusted supplier network.
Panel Thickness & rigidity: Our skilled technicians achieve repeatable results from thinner and thicker materials, from rigid substrates to materials with more flex.
Close-tolerance cutouts & features: Our CNC routing processes are designed to compensate for thermal shift, clamping and other factors that skew tolerance.
surface finish requirements: We offer powder coating, anodizing and painting, delivering the right texture, finish and color match.
graphics & engraving: From branding and instructions to aesthetic details, our printing and engraving capabilities create the desired look and message.
pem hardware insertion: For ease of final assembly, we press self-clinching fasteners including nuts, studs and standoffs into sheet metal with dimensional accuracy and alignment.
integration: Our capabilities include custom graphic overlays, and precision die cut adhesives and gaskets that support more efficient production.
Precision panels built for performance
Better throughput and a strong finish. iD Products provides machined panel solutions that support applications across multiple industries including:

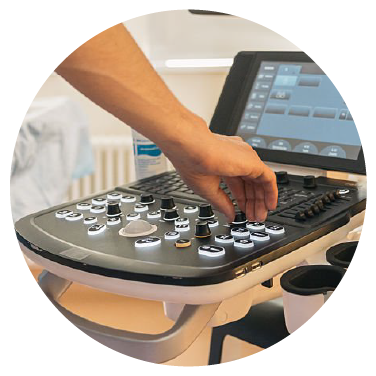

Protective enclosures for medical and diagnostic equipment

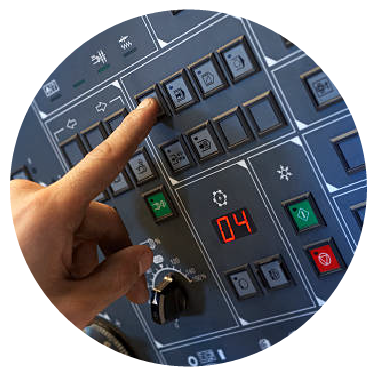

Control panels for industrial machinery and equipment
Contract assembly for production readiness

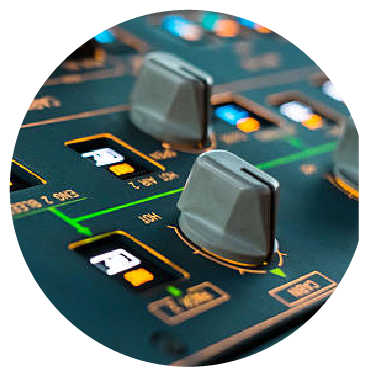

User interfaces for electronic instruments and controls
Custom hardware, graphic overlays and sealing solutions

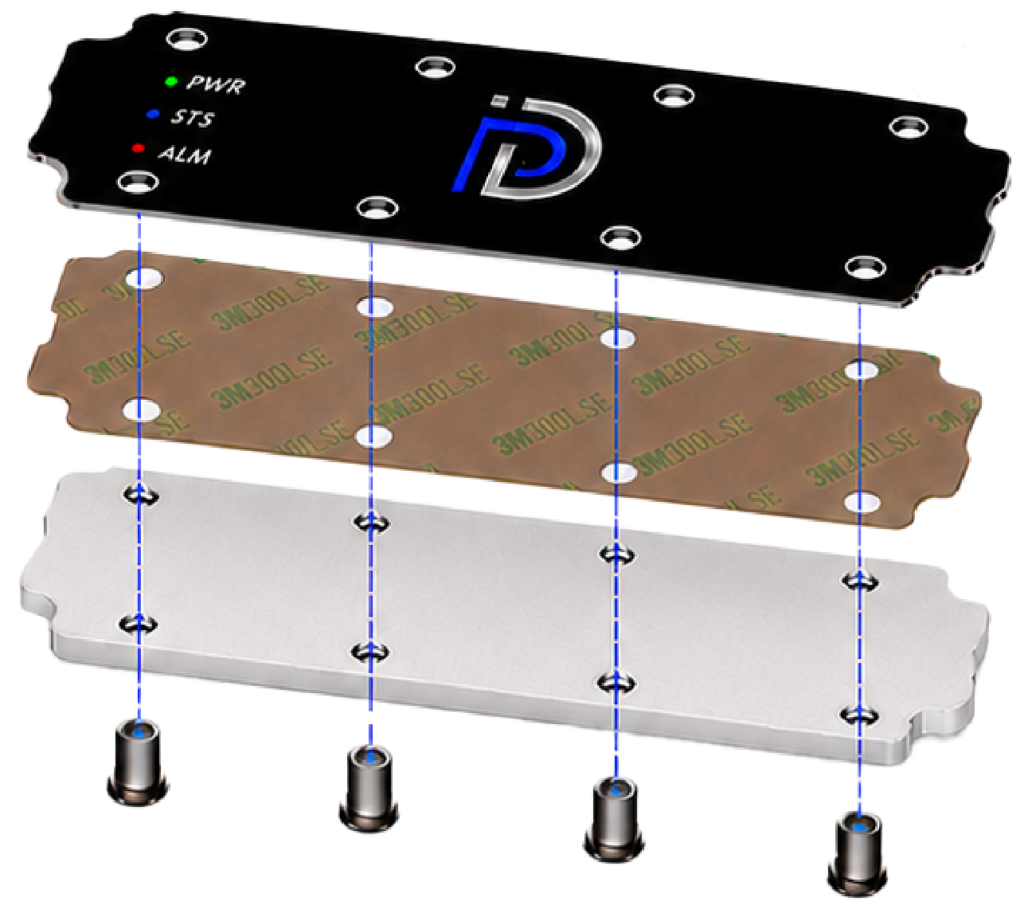

Technical specifications for close tolerance machined panels
Materials and substrates
- Aluminum
- Acrylic
- Polycarbonate
- ABS
- Engineering plastics
- Plastic sheet stock
- Laminated plastic substrates
- Other non-ferrous sheet materials (application dependent)
Secondary operations
- Finishing: Powercoating, painting and anodizing
- Marking and identification: Engraving, printing, laser marking
- Hardware installation: PEM fasteners, stud insertion, standoors, threaded inserts and rivets
- Assembly and integration: Hardware insertion, graphic overlay application, adhesive and gasket installation
Tolerance Capabilities
- » +/- .005 inch
CNC machining capabilities
- Multi-axis milling for complex geometries
- Contouring for formed surfaces
- Precision pocketing and recessed features
- Engraving for branding and identification
- Surface grinding and reaming for critical tolerances
- Precision locator holes and other alignment features
- Laser marking for accuracy
Custom machined panels from prototype to production
Plan:
Identify the right materials, finishes and assembly approach.
Prototype:
Proof of concept with fast turnaround. No tooling required.
Refine:
Finalize fit, finish and assembly requirements.
Scale:
Move seamlessly into production with a process built for efficiency.
Support:
Adapt to design revisions and changing production volumes.A precision fit through quality control
inspection: Every panel is verified against specifications.
Finishing: Cosmetic surfaces meet appearance requirements while protecting the underlying material.
Assembly: Hardware insertion and secondary operations simplify production.
Delivery: Reliable production schedules support ongoing manufacturing needs.
FAQs about close tolerance machined panels
What makes a panel a close tolerance machined panel?
A close tolerance machined panel is manufactured to precise dimensional requirements that help ensure proper fit and alignment during assembly. Tight tolerances are often required for cutouts, mounting holes, hardware locations and mating components.
Can you support both prototypes and production runs?
Yes. We support projects from early prototypes through full production. CNC machining allows for fast-turnaround prototypes without tooling costs while providing a smooth transition to repeatable production manufacturing.
What finishing options are available for machined panels?
Available finishing options may include powder coating, anodizing, engraving, printing and other cosmetic or protective treatments depending on the material and application requirements.
Can you add hardware, graphics or overlays to a machined panel?
Yes. Secondary operations can include hardware insertion, graphic overlays, labels and other assembly services to help reduce supplier complexity and improve production efficiency.
How do close tolerance machined panels help reduce assembly issues?
Accurate machining helps ensure that displays, connectors, fasteners and other components align properly during assembly. Consistent dimensional control reduces rework, improves fit and supports a smoother manufacturing process.
Request a quote for your machined panel project
Ready to move forward? Send us your project requirements, including:
- Drawings or CAD files
- Material specifications or preferences
- Tolerance requirements
- Finishing requirements
- Hardware installation or assembly needs
